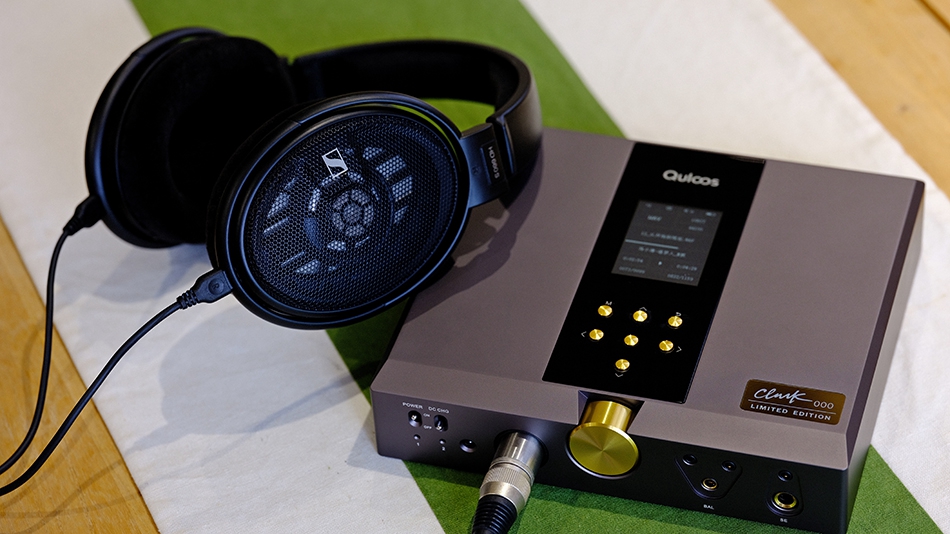

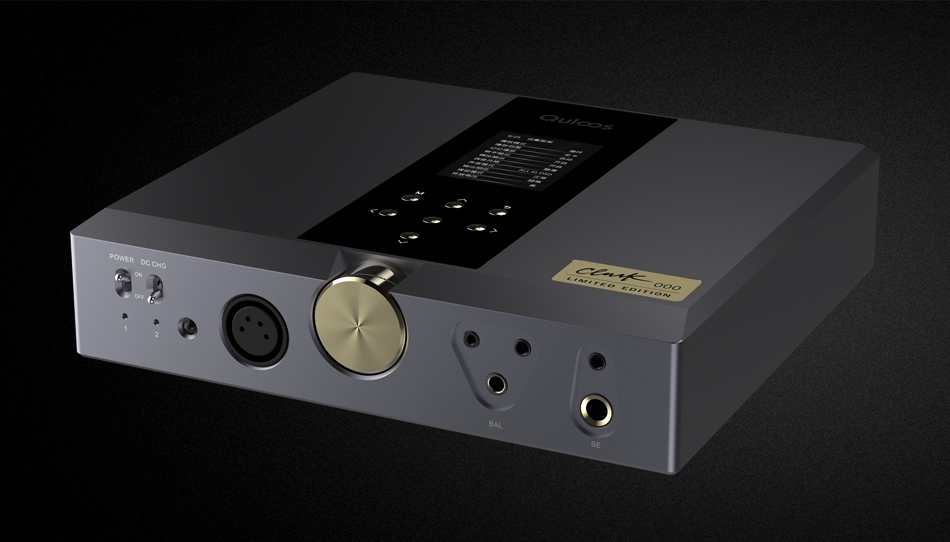

QA390LE/MOD(QA390V2) Movable Desktop Player

The QA390LE is completely sold out, and the currently available model is the QA390MOD.

1. It shares identical circuitry and materials with the QA390LE, including:

a. Equipped with dual AS338 global clocks.

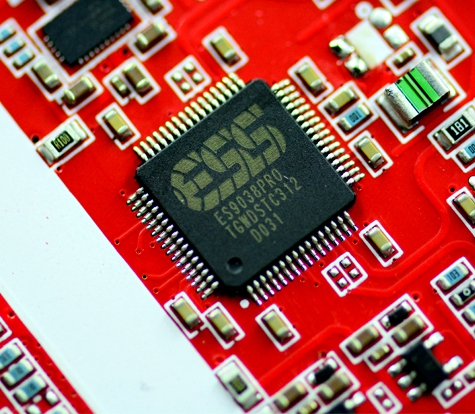

b. Utilizes the ES9038PRO DAC chip.
c. Supports high-definition Bluetooth input comparable to local playback with LDAC.
d. Features the same power supply optimizations as the QA390LE.
e. Incorporates the same analog circuit optimizations as the QA390LE.

2. The main difference between the QA390MOD and the QA390LE lies in the production process; the QA390MOD adopts a more mass-production-friendly process instead of the limited-edition process.

3. Externally, the QA390MOD does not have the limited-edition numbered plaque.

4. In terms of sound quality, the QA390MOD is very close to the QA390LE, with only a slight difference in richness, achieving an overall similarity of over 95% (most audiophiles may not easily discern the difference).

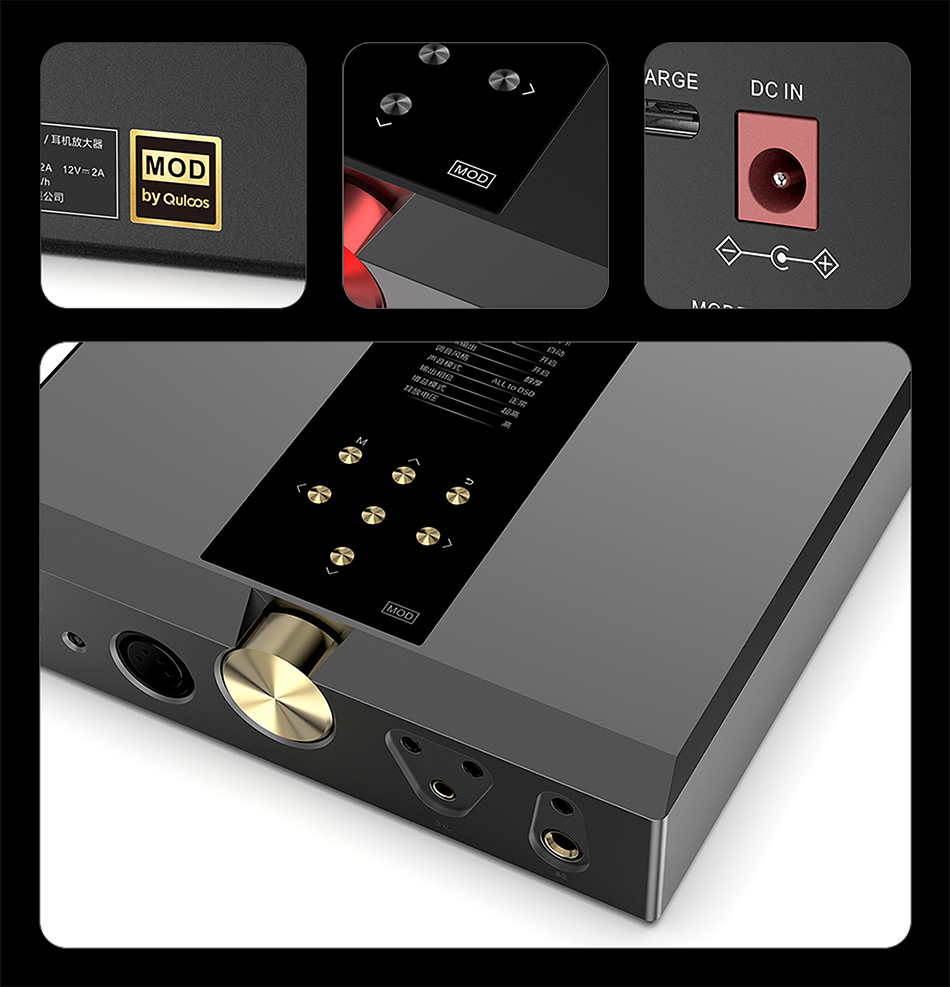

How to distinguish between the QA390MOD and the standard QA390:

1. The QA390MOD has the "MOD" label printed at the bottom right corner of the glass lens.
2. The QA390MOD features a special "MOD by Quloos" sticker on the left side of the device.
3. Since the currently produced QA390MOD uses the same ES9038PRO version PCB as the QA390LE, the DC input socket is the same rose red color as the ES9038PRO version (the original AK4497 version had a black DC socket).

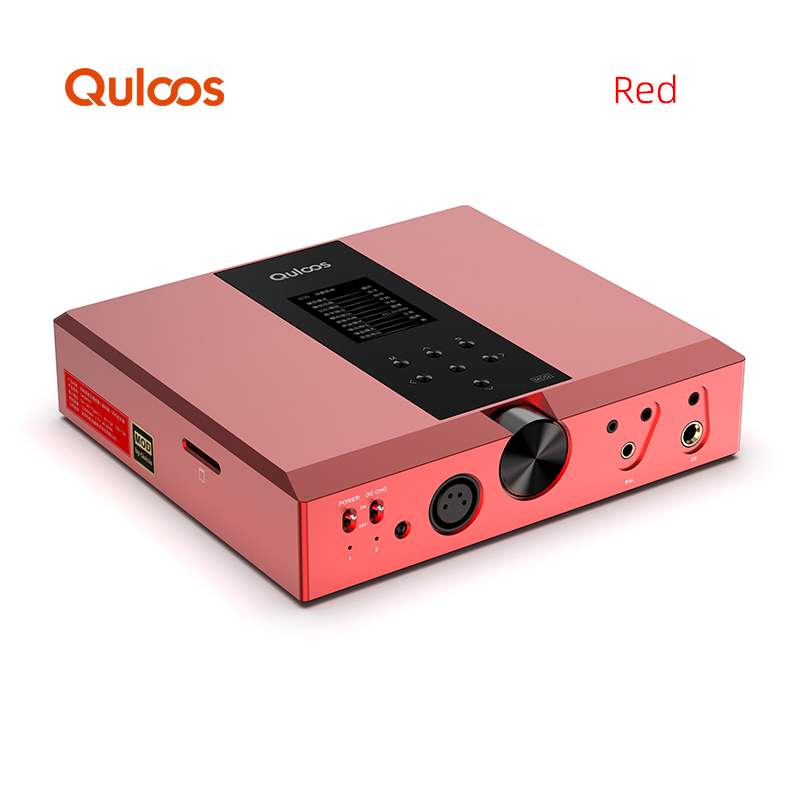

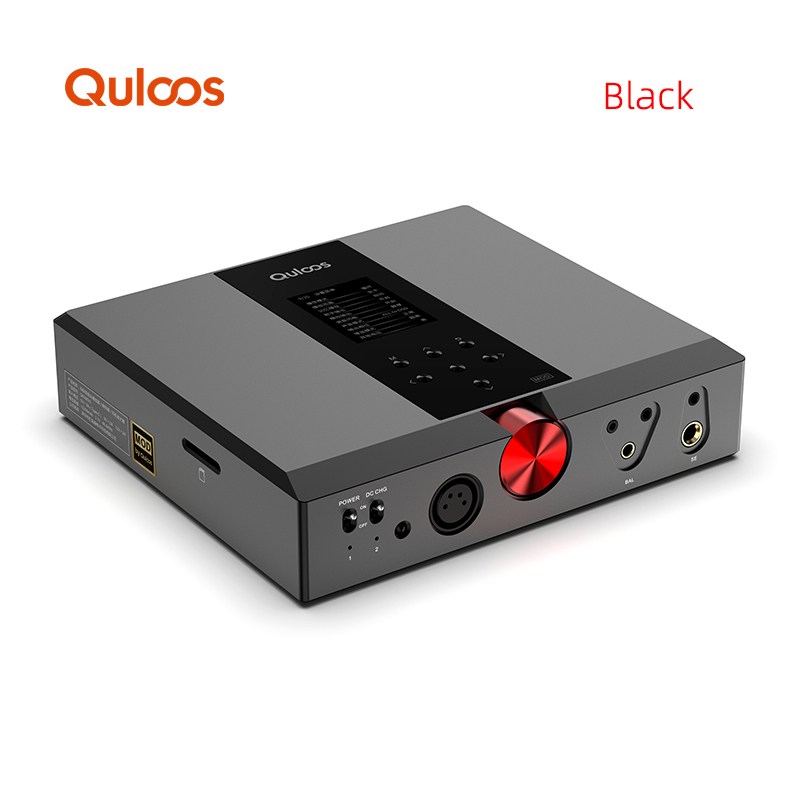

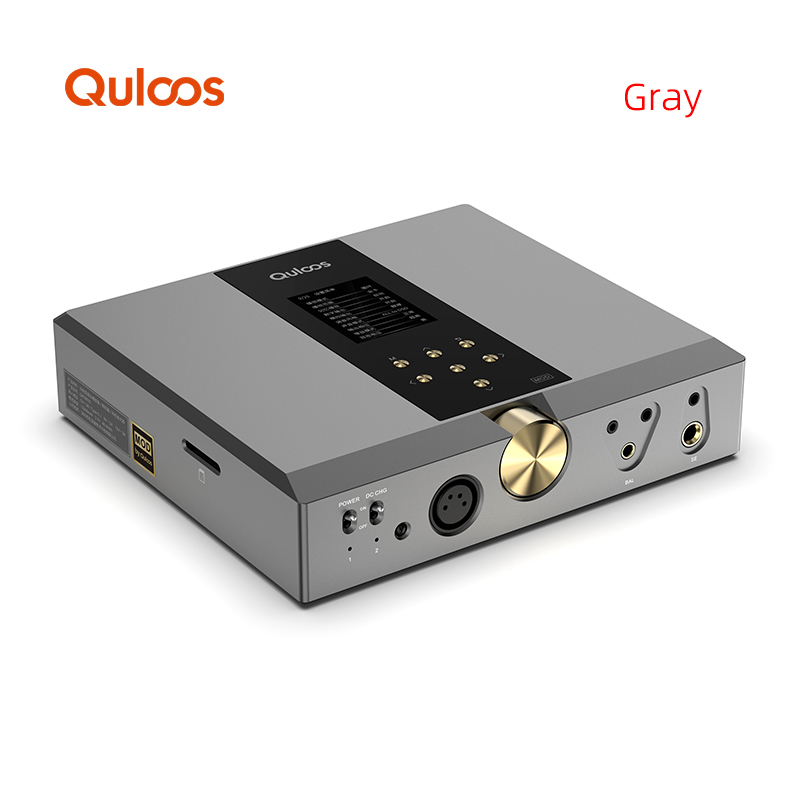

4. The currently produced QA390MOD, in addition to the regular black and red models, also includes a titanium gray version identical to the limited edition, making it easier for users to pair with the QH1 headphone amplifier.

From the first limited edition product QA360LE released by QLS fiver years ago to the introduction of the second limited edition today, Clark has been improving the product 's sound quality during use this standard version. If the improved sound has achieved the level that he couldn’t wait to share, we might launch the modified edition in the market. Since Clark has been using some non-mass production techniques with low efficiency, we have to use more human resources and only provide limited products, in order to maintain high-quality sound.

Two years after the QA390 standard edition released to the market, the QA390LE (limited edition) emerged. Although it is coincidental and lucky that we can make such great sound improvements, we will definitely deliver more mature products with better sound effect through the long-term try and modify of Clark.

What does the limited edition upgrade?

Note: Although the DAC chip is changed, it contributes very little to the sound improvement. In fact, after the AK4497 is used up in the future, the QA390 standard version may also be directly change DAC chip to ES9038PRO without changing the price.

Clark’s comment: The sound of the limited edition is not the simple upgrade of that of the standard edition QA390, It’s more like a brand new product with completely different sound levels. The limited edition provides fresh sound with first-class musicality. Its full and heavy mid-low frequency sound is rather impressive. The exquisite sound effects make people feel like being in a concert scene.. Most importantly, it can present the sound with great momentum and dynamics that seemingly do not match its appearance. It’s a device that can enable people totally lost in music.

Limited to 600 units worldwide, numbered 001-600, numbered S01-S50 as the reserved audition prototype, and each device has a unique number and Clark’s signature (it is laser printed on a metal nameplate).

Parameter Differences between the Limited and Standard Edition

1. Audio test parameters include distortion, signal-to-noise ratio, dynamic range, separation, which are basically the same with the standard edition(the headphone amplifier output power of the limited edition will be greater）.

2. Due to the high power consumption of ES9038PRO, the battery life of the limited edition is reduced by 1.5 hours, and the entire device can operate about 8.5 hours.

3. Due to the internal functions of ES9038PRO, the “Output Phase” in the menu of the limited edition does not work.

Power circuit design that is lower than battery noise

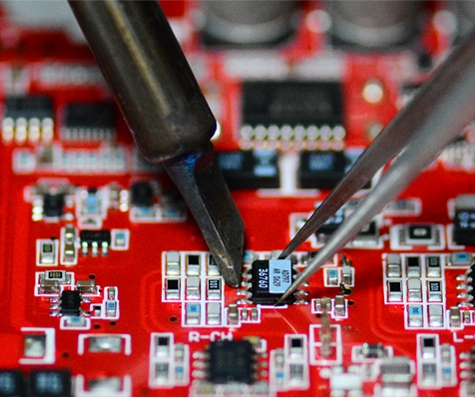

For the power supply of digital circuits, the battery is not clean enough. In order to solve this problem, we use a lot of LT3045 chips with much lower noise than the battery in QA390, completely eliminating interference from power supply.

The noise of this chip is only 0.8μVRMS, which is much lower than the noise when the battery is working (the noise is about 2.7uV when the 3.7V lithium battery has a 500mA load). At the same time, the chip has a low frequency of nearly 100dB and a high of 76dB at 1MHz. The power supply ripple rejection capability eliminates interference from power supplies.

Can be used as a relative reference standard for ideal sound

Unconstrained by the volume, the battery generates a set of desktop-level isolated regenerative power supply, which solves the problem that the traditional AC power supply is affected by the power environment, making the sound more stable and stable, so that all users can hear the sound we want to express.

The QA390's battery-powered sound is largely unaffected by any external factors and is ideal as a relative reference for good sound.

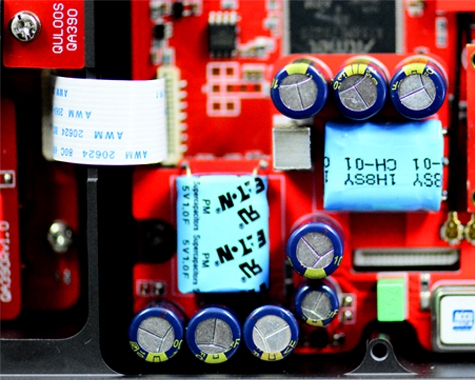

Two super capacitors, supplemented by multiple isolated ultra-low noise power circuits

Dual 1000000uF low internal resistance super capacitor support for digital and analog partial isolation power supply, similar to desktop dual transformer design

Completely different from the battery circuit of the portable

Most of the batteries used in portable players are limited to 2 ~ 3A, which makes the sound scale, dynamic and momentum less natural than desktop players. The battery used in the QA390 can achieve a single discharge current of 10A, and we use multiple parallels to further reduce the internal resistance while the current capability is several times. This current explosive force exceeds many machines that use 220V power supply.

In addition, the analog and digital inlets of the power supply circuit each have a 1000000uF super capacitor, which provides further protection for the instantaneous current. The built-in very good power supply system is the basis of its good sound.

ALL To DSD mode, Listen more than CD

The following square wave output analysis is the measured figure.

By the comparison of the above measured wave forms, we can find that ALL To DSD is more purified and has less harmonic distortion than the original PCM direct output signal.

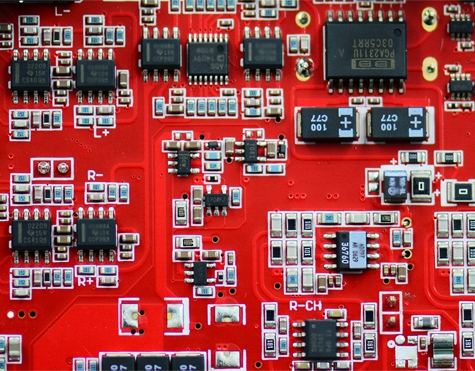

11 selected op amps in the analog section + 8 dual-current transistors

provide high-density, Delicate, Open, Imposing Sound

Programmable analog potentiometer volume control

solves left and right imbalance and digital loss

1. A truly mobile all-in-one machine designed with a large-capacity battery and a current and voltage in the machine according to the standards of high-end desktops.
2. Double 1000000uF low internal resistance super capacitor blessing for digital and analog part of the isolated power supply, similar to the desktop dual transformer design.
3. The balanced amp can output more than 20V, which is convenient for driving high-impedance headphones.
4. The final stage power tube current output capability is 2700mA, which promotes the low-impedance low-sensitivity headphones.
5. The DAC chip uses ES9038PRO × 1 and supports ALL To DSD.

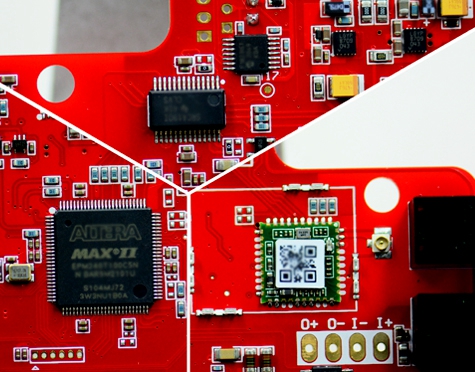

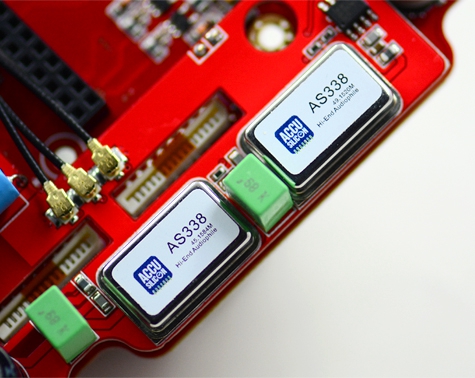

6. Two AS338 femtosecond crystal designs, high-speed precision-controlled CPLD clock processing, and global unified clock.
7. Built-in single-chip single-threaded SD card pure music player.
8. 5.0 HD Bluetooth input,up to 24bit 96Khz for easy connection to mobile phones.

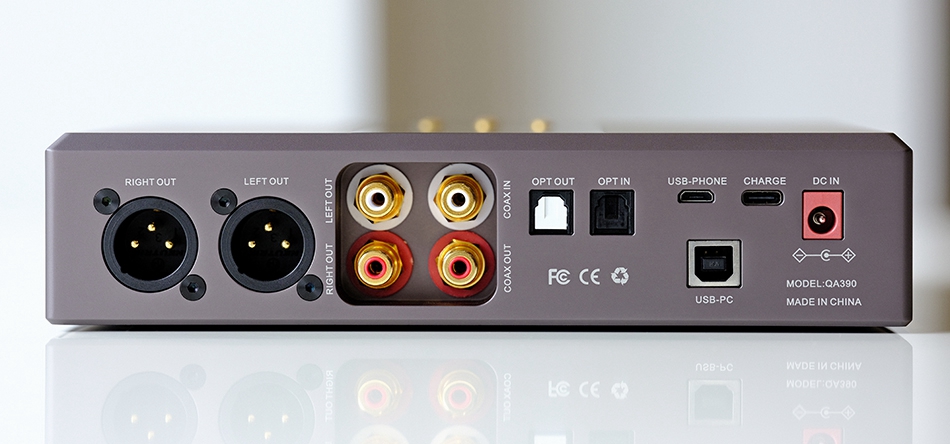

9. Two-way USB interface, all the way to the phone or tablet (no camera kit required), all the way to the Italian Combo384 to access the computer.
10. Four 3300mAh Panasonic (formerly Sanyo) 18650 batteries provide a total battery capacity of 13200mAh.
11. More than 30 ultra-low noise power chips provide a clean enough power for each circuit device.
12. Headphone port is complete, single-ended: 3.5, 6.35; balanced: 2.5, 3.5, 4.4, XLR.

     Product Positioning

1. Don't care about volume and weight, the pursuit of sound is uncompromising, and you want to experience the sound quality of a large machine on a mobile machine.
2. Frequent business trips, participation in various parties, events, offices, homes, study, living room, bedside and other enthusiasts with mobile needs.
3. A user who wants to go out with a big headphone.
4. Use on the desktop, want to push the big headphones more easily and get a good voice.
5. High-end desktop users who don't want to invest too much money to toss around the wire, electricity, etc., and want to get good sound quality.
6. Very good sound quality desktop unit, can replace your front-end source, can be directly connected to the active speakers or connected to the amplifier to drive passive speakers.
7. The digital and analog outputs are first-class, can be used as a digital turntable or decoded to meet the high sound quality requirements of multiple scenes.
8. The following scenario:
     (a) If you have invested a lot of money in your desktop system power supply and wire matching, but the sound is still not satisfactory, I suggest you try the battery-powered QA390, its sound can at least give you a reference.
     (b) If your desktop system is sometimes nice, sometimes not good, one sound during the day, another sound in the middle of the night, or a good period of time and not good for a while, it proves that the electrical environment has a great influence on the sound of your system, completely immune to electricity. The QA390 for environmental impact must be tried.

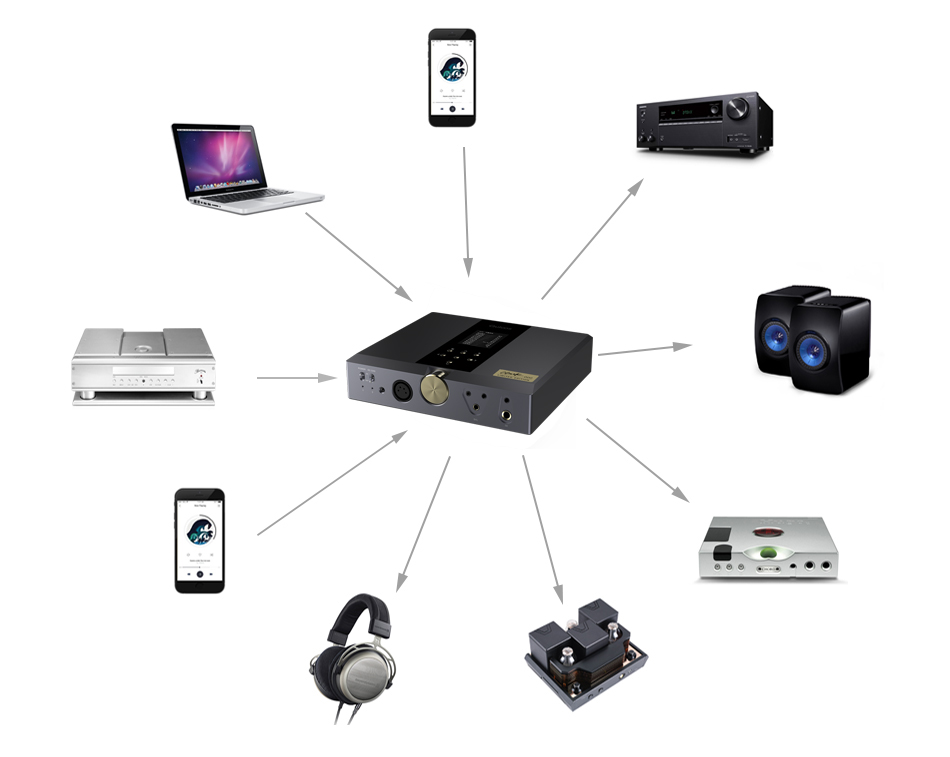

    Application scenario

QA390MOD is widely used and is not limited to the above applications.
More applications can be consulted by technicians.

• Internal playback storage media: use an external SD card or TF card plus card sleeve in FAT32 format, currently supports a maximum capacity of 512GB(Sandisk TF or SD card is recommended)
• Internal playback support: 16 - 32Bit, 44.1KHz ~ 352.8KHz, DSD64 ~ DSD128.
• USB interface - USB B port: use the authorized Combo 384, support 32Bit / 384KHz PCM and DSD256
• USB interface--Micro port: use SA9227 interface, Apple phone and tablet do not need camera kit, support 32Bit / 384KHz PCM and DSD128
• Bluetooth: Supports Bluetooth 5.0, supports HD Bluetooth up to 24Bit / 96KHz
• Coaxial input: 75Ω matched impedance, support 24Bit / 192KHz and DSD64(DoP)
• Optical Input: Supports 24Bit / 192KHz and DSD64（DoP)
• Coaxial output: 0.5Vp - p75Ω, support 24Bit / 192KHz and DSD64(DoP)
• Optical output: support 24Bit / 192KHz and DSD64(DoP)
• Analog output:
    Frequency response: 20 - 20KHz
    S / N: 122dB
    Dynamic range: 121dB
    Stereo Crosstalk：120dB
    THD+N：0.0005%
• Output level:
    RCA (L&R) 2.5V (closed pre-amp)
    XLR (L&R) 5.0V (closed pre-amp)
    SE (Unbalanced)maximum 10.5Vrms(High amp voltage, Ultra high gain, 600Ω load)
    BAL(Balance)Maximum 21Vrms（high amp voltage, ultra high gain, 600Ω load)
• Headphone matching impedance: 8Ω - 600Ω
• DAC: ES9038PRO x 1
• Volume control (including preamp volume control): PGA2311UA
• Reference clock jitter: 0.038 picoseconds (38 femtoseconds)
• Charging port: Available Type-C port, DC port available, QC2.0 quick charge.
• External power supply: DC 5.5*2.1 port, can also be charged (panel switch selection)
• Life time: 8 ~ 9 hours (depending on settings, music format, load condition)
• Charging time: Type-C common charge: 8 ~ 9 hours, Type-C fast charge / DC port: 4 ~ 5 hours
• Host & Remote Control Material: All-aluminum CNC integrated milling
• Product weight: 3.1kg in full package, net weight 1.82kg
• Machine size: 20cm x 18cm x 4.45cm, Packing size: 33cm x 27cm x 9cm

Single-ended headphone port rated output power

32Ω	300Ω	600Ω
1900mW / ch	360mW / ch	180mW / ch
High amp voltage and high gain	High amp voltage and supper high gain	High amp voltage and supper high gain

Balance headphone port rated output power

32Ω	300Ω	600Ω
2800mW / ch	1200mW / ch	720mW / ch
Medium amp voltage and supper high gain	High amp voltage and supper high gain	High amp voltage and supper high gain

1. QA390MOD(QA390 V2) HIFI Player x 1
2. 64GB TF card (with card holder)  or SD card  x 1
3. USB3.0 card reader x 1
4. USB A port to B port USB cable x 1
5. TYPE-C charging cable x 1
6. External power supply (can be used for charging) x 1
7. Infrared remote control x 1

Note: The USB cable connected to the mobile phone is not standard. If you need a friend, please contact customer service to purchase.

Price: USD $1999.00 (Not included shipping)
