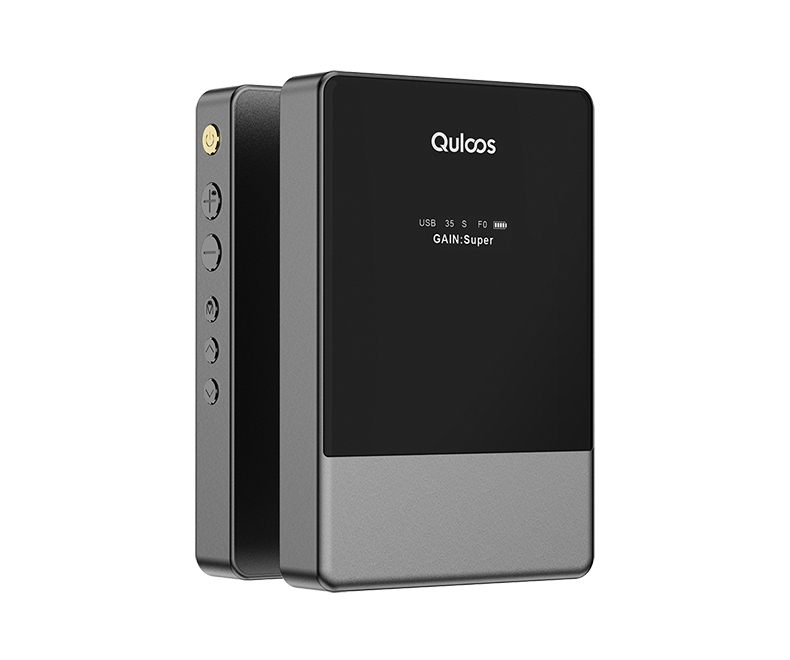

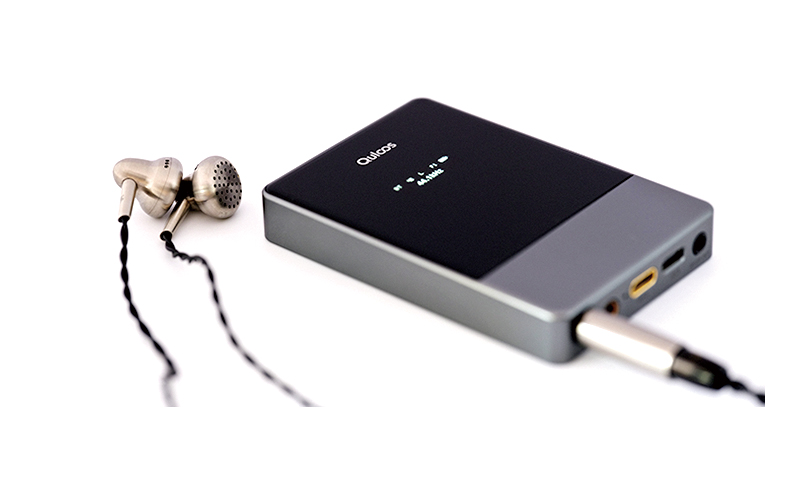

MUB1 Portable HiFi USB and Bluetooth DAC & Headphone Amp |
|
Battery local pure power supply |
1100mW/ch high output power
Optional Super-high gain | NDCS shielding | Wurth inductor
Panasonic electrolytic capacitor | Femtosecond crystal |
BUF634*4 output |
|
 |
|
Music listening, enjoyable and practical.
|
|
|
Listening impressions from Clark:
MUB1’s general
sound design is consistent with QA361 and QA390LE. With
high sound density and a strong sense of structure, this
music is warm, sensitive, steady, and long-lasting to
listen to. It has excellent hierarchical details and
vertical spatial feeling.
The PCB area and power supply of MUB1’s DAC&headphone
amplifier section are greater than those of QA361 since
it lacks a player part. MUB1 is an inch long and an inch
strong, and it has a few advantages over QA361 in terms
of sound quality. These advantages include a larger
sound field, a more complete sound structure, a sound
that is softer and more durable to listen to, greater
sound dynamics, and more solid mid- to low-frequency
reproduction.
How could such lovely and sweet music not make you feel
something? Therefore, I believe that each enthusiast
needs at least one MUB1.
|
|
|
|
Main design highlights |
|
|
 |
1100mW@32 Ω
high power, more leisurely |
|
|
 |

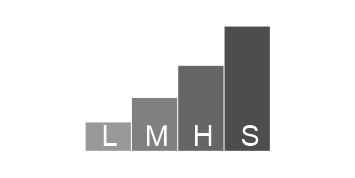

Super-High Gain
4-speed gain selection |
|
|
|
 |
|
CS43131*4
better sound quality |
|
|
|
 |

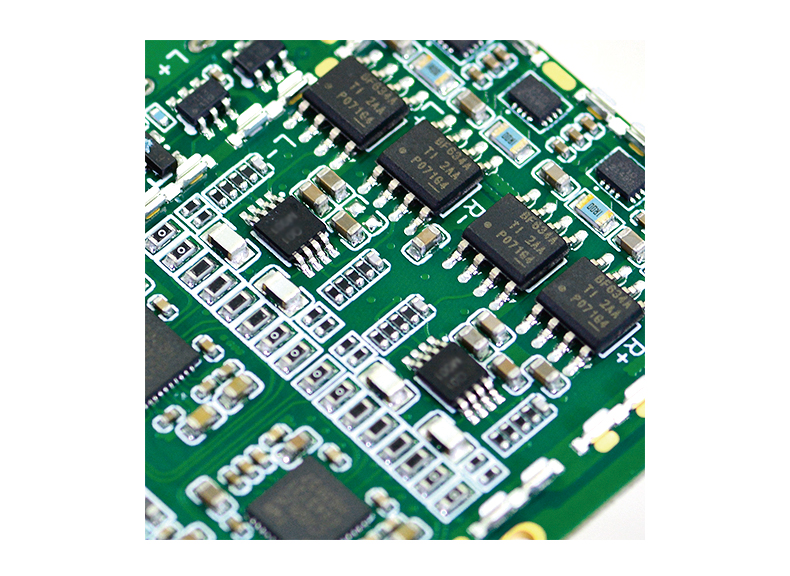

BUF634*4
Amps big lineup |
|
|
 |
| 2500mAH, pure and abundant local power supply |
|
|
|
 |
|
Stable and non-interference NDCS shielding design |
|
|
|
 |

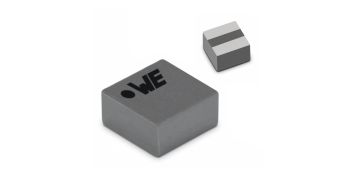

Wurth inductor
with a spacious and full sound |
|
|
 |
| Panasonic electrolytic capacitor with a good music atmosphere |
|
|
|
 |
|
Selected femtosecond crystal oscillator with nominal jitter of 150fs |
|
|
|
 |

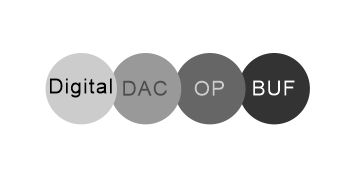

Four level independent
HiFi architecture |
|
|
 |
| Powerful power supply system with 14 independent power sources |
|
|
|
 |
|
24Bit / 96kHz
high-definition Bluetooth/tr>
|
|
|
|
 |
Bluetooth specially optimized for
abundant sound information |
|
|
 |
PCM
32Bit / 384kHz |
|
|
|
 |
|
DSD256 |
|
|
|
 |
UAC1.0
mode |
|
|
 |
Lower distortion
0.0001%/tr>
|
|
|
|
 |
|
Signal to noise ratio
132dB |
|
|
|
 |
Dynamic range
132dB |
|
|
 |
Noise almost
“0” |
|
|
|
 |
|

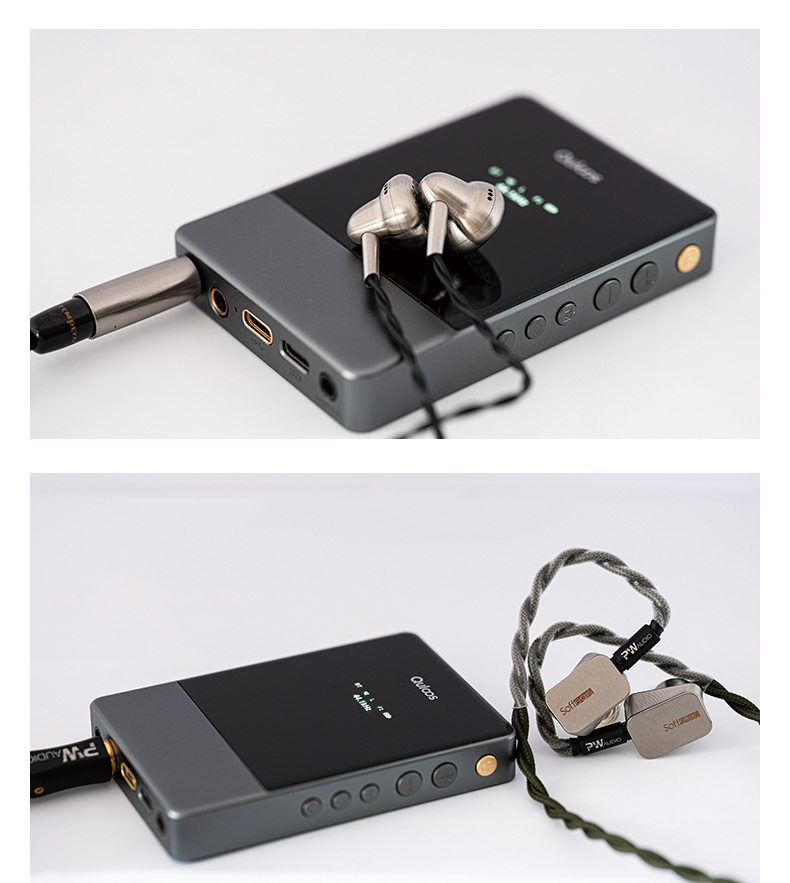

4.4mm, 3.5mm
headphone output & line output |
|
|
|
 |
SPDIF
optical & coaxial output |
|
|
 |
Pentaconn
4.4 headphone socket |
|
|
|
 |
|
Separation of charging and data
(external power supply accessible) |
|
|
|
 |
Start with the car ignition in
CAR mode |
|
|
 |

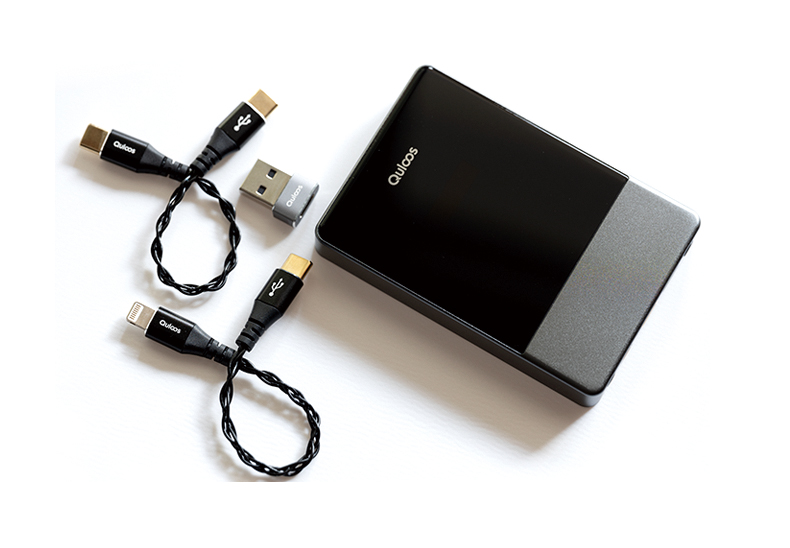

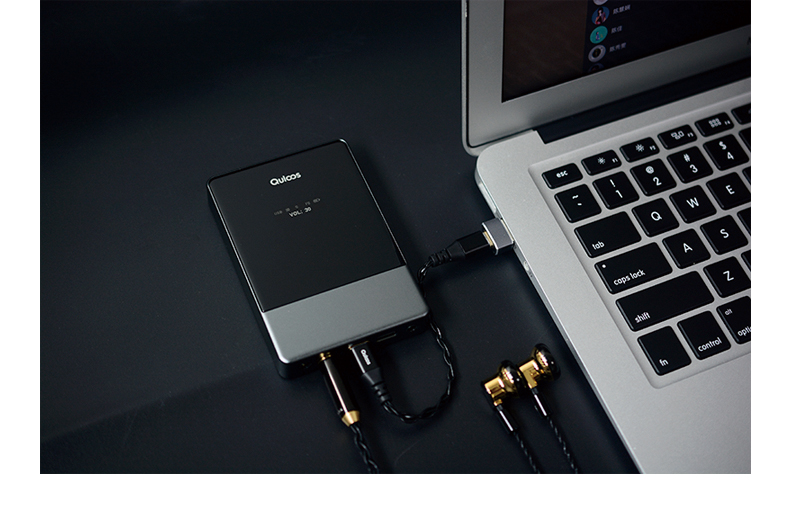

Multi-platform
compatibility |
|
|
|
 |
|
6-layer circuit board for
digital analog separation |
|
|
|
Note: A patent application of FiiO has been submitted for the CAR mode, and FiiO has permission to utilize the CAR mode of this product.
|
| |
|
Five major application scenarios |
|
|
|
24Bit 96K high-definition Bluetooth |
|
Receive mobile streaming input without bundling for convenient and good enough sound |
|
|
 |
|

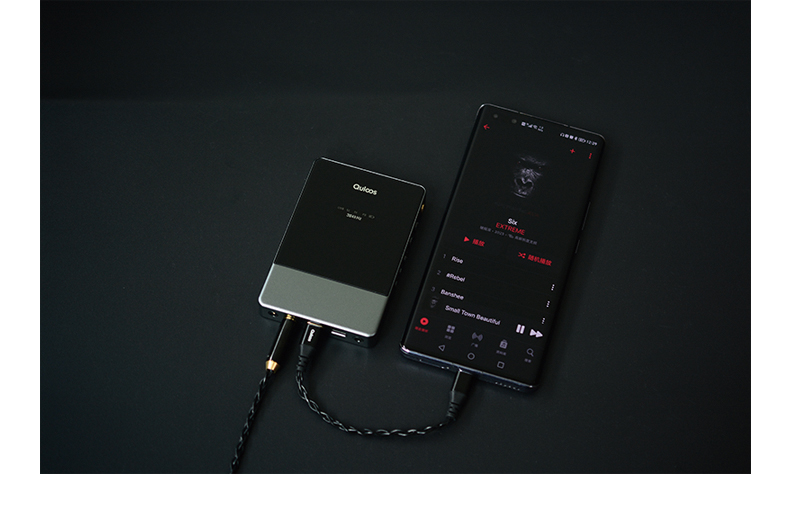

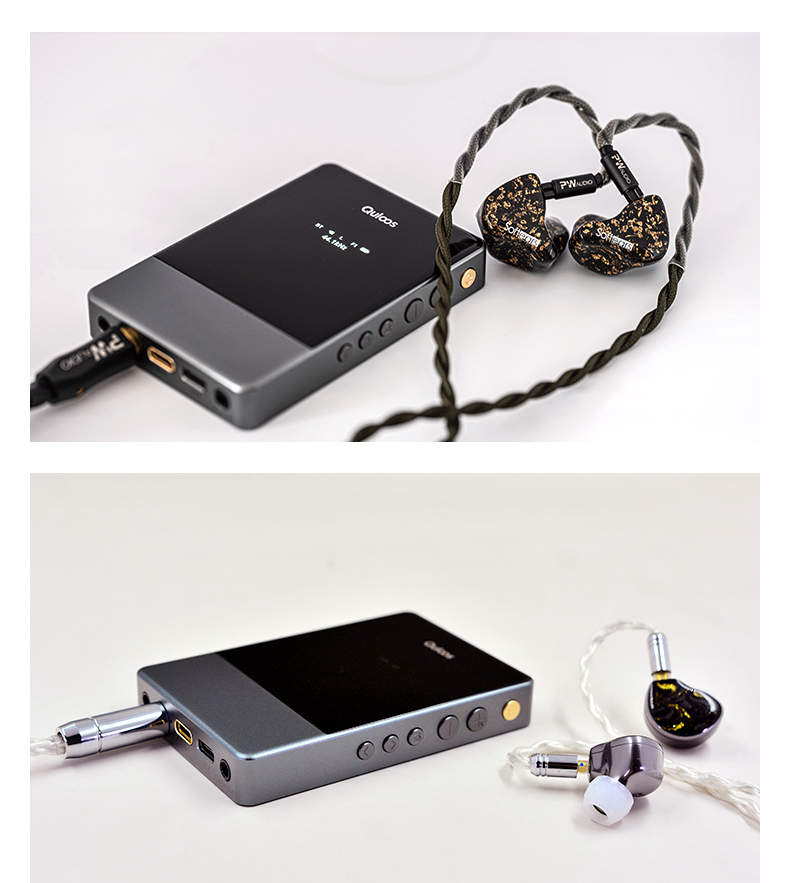

Mobile phone connection DAC&Headphone amplifier |
|
Pure and abundant local battery power supply
No anxiety of phone battery with excellent sound |
|
|
 |
|
Office desktop PC-HiFi |
|
Desktop small DAC and Headphone amplifier all-in-one machine
Act discrete enough without discrete voice |
|
|
 |
|

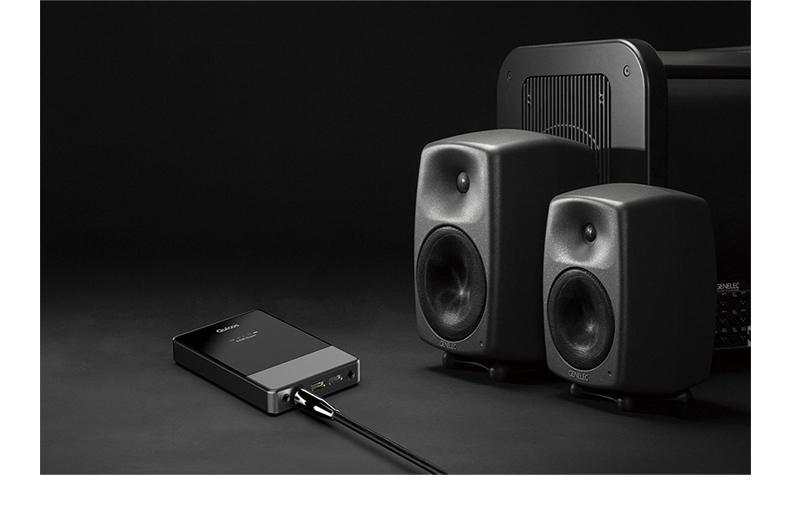

Car HiFi audio source |
|
Coaxial / optical input to DSP, or AUX to host
CAR mode with good sound, more convenient |
|
|
 |
|
Home speaker system |
|
Expand high sound quality mobile streaming input function
Simple enough, practical enough, and good sound enough |
|
|
 |
|

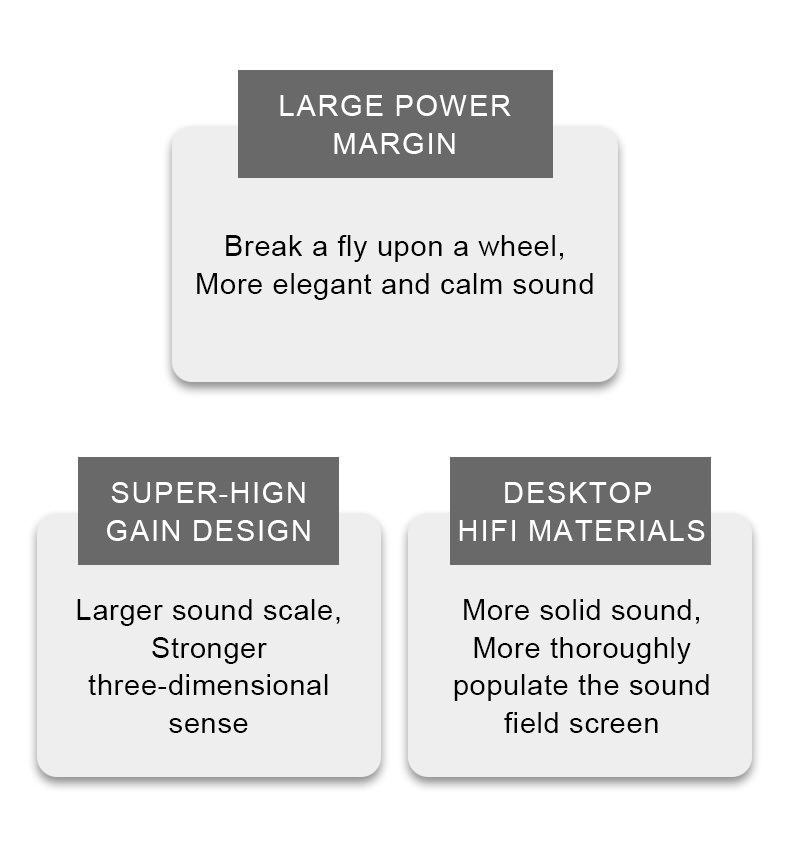

Three keys to good sound in MUB1 |
|
| |
|

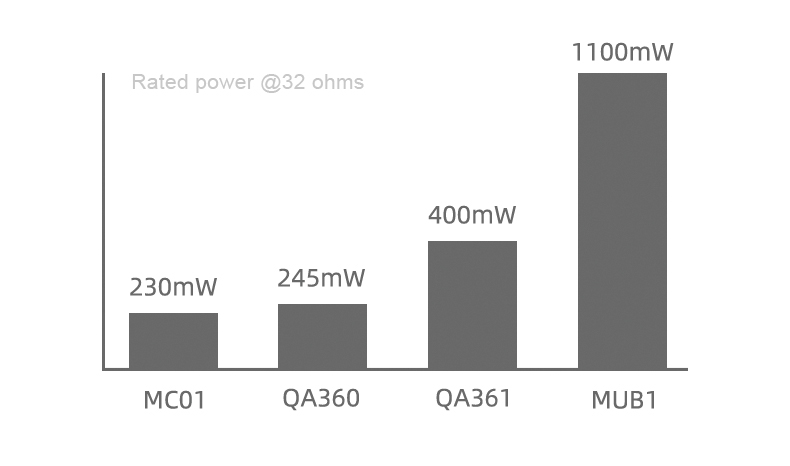

2.75
times the power of QA361 dual high mode |
|
|
|
Sufficient power margin
The sound is more easy and adaptable
MUB1 balance port output power up to 1100mW/ch
It is much greater than the output power of many
flagship players
Put fine timber to petty use
|
|
 |
| |
|
Super-Hign gain is 3-4 times voltage amplification with high gain |
|
|
|
|
Modern machines pursue testing parameters
The sound gets more flat and ordinary as the gain drops
MUB1 returns to traditional old machines with over 10 times
voltage amplification
Outstanding musical taste causes listeners to unconsciously
dance to the music
Realistic visuals set to vibrant, exuberant music that seems
just out of reach |
|
 |
| |
|

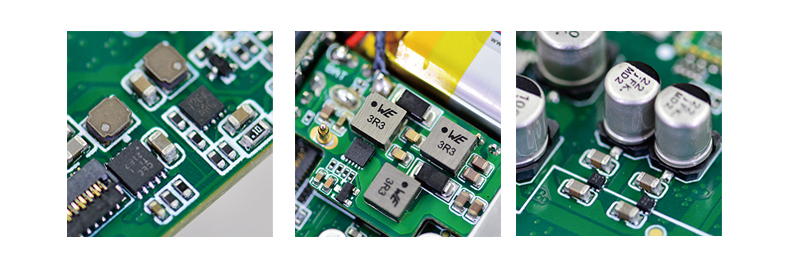

HiFi performance needs to be ensured by the materials used |
|
|
|
Use desktop HiFi materials
Make MUB1 sound more like a real HiFi device

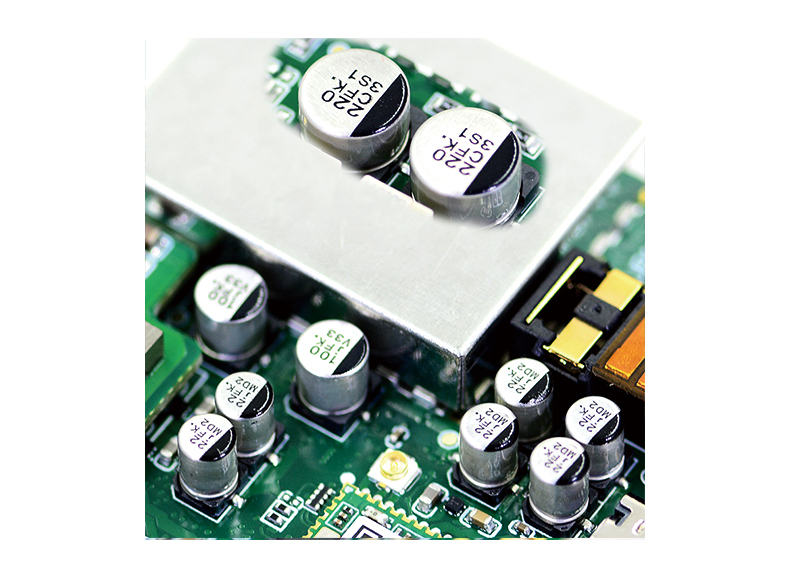

Audio electrolytic capacitors are rarely used in portable
goods.

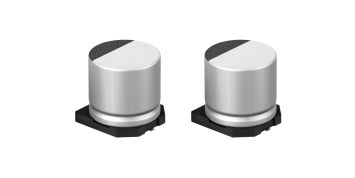

Panasonic electrolytic capacitor with rare sound dense sense
of space
The BUF634 provides a more scaled sound
Low internal resistance Wurth inductor with stable and
atmospheric sound |
|
 |
| |
|

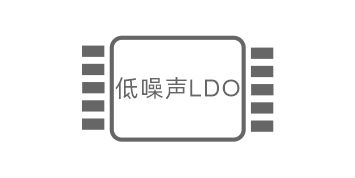

Sound created by power supply |
|
|
|
Design of a power supply that is
broadband, low noise, high transient, and low in internal
resistance
Up to 14 power sources provide independent power supply for
each circuit part, ensuring purity and stability
This battery cable is combination of HiFi wires using
different materials, resulting in a noble sound.
Analog power supply voltage of up to 16V at Super-high gain,
with sound more open.
Design of a low noise power supply with analog and digital
separation, achieving seamless sound |
|
 |
| |
|
Oscillator is the soul of sound |
|
|
|
MUB1 selected femtosecond crystal
oscillator
High precision, with a nominal jitter of only 150fs
Good crystal oscillator with stable sound |
|
 |
|

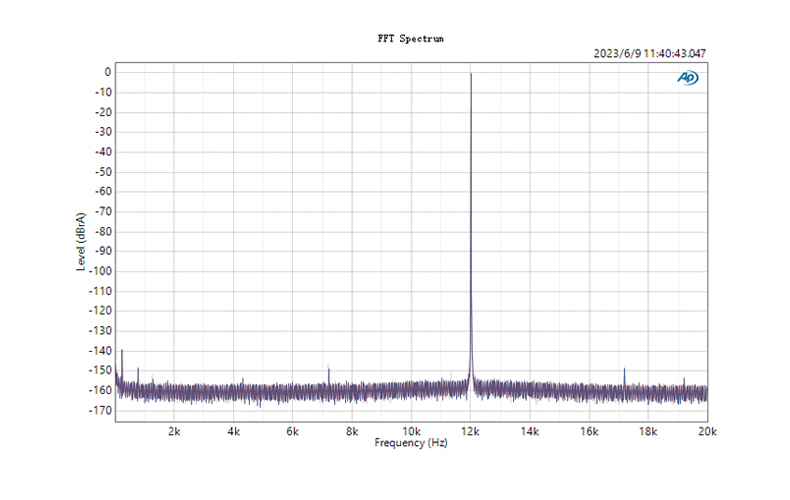

Measurement based on APX555 audio analyzer |
| |
|
Sound quality on Bluetooth is already adequate |
|
|
|

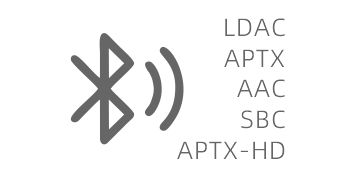

Bluetooth 5.0, CSR 8675 optimization
module with good sound
Supports 24Bit/96kHz high-definition Bluetooth
Specially optimized Bluetooth overall design
The information content and sound density are already very
close to USB connections
NDCS dead corner free circuit shielding technology
Stable connection without interference, pleasant to listen
to, and better to use |
|
 |
| |
|
USB DAC&Headphone amp with full platform support |
|
|
|
Support 32Bit / 384kHz, DSD256
Android, iPhone, and tablet ready to use
Local batteries are pure and plentiful. the sound quality is
higher
ASIO driver, compact PC HiFi all-in-one machine for Windows
desktop
Act discrete enough without discrete voice
UAC2.0, Linux, MacOS drive free,
The USB OTG output of HiFi player can also be used
Support UAC1.0 |
|
 |
|
|
|
|
CAR mode that simplifies car audio upgrades |
|
|
|
MUB1 has optical and coaxial outputs, and
Line out can also be set
One line connection to the car audio DSP is sufficient,
simple and convenient
Connect to the host Aux in through level setting Aux out
Both Apple and Android phones can increase the volume on the
phones, making it more convenient
In CAR mode, following USB power to automatically switch on
and off, more worry free |
|
 |
|
|
|
Four Cirrus Logic flagship DAC chips |
|
|
|
Start liking Cirrus Logic DAC due to the
good sound quality of CS4398
It has the uncommon natural, enjoyable, and smooth sound of
a contemporary DAC
The new generation CS43198 and 43131 have better designs
The sound is more precise and realistic thanks to the
special NOS option.
Using 4 CS43131, eight channel DAC designed as two channels
Each four channel DAC is for providing more detailed and
louder sound |
|
 |
|

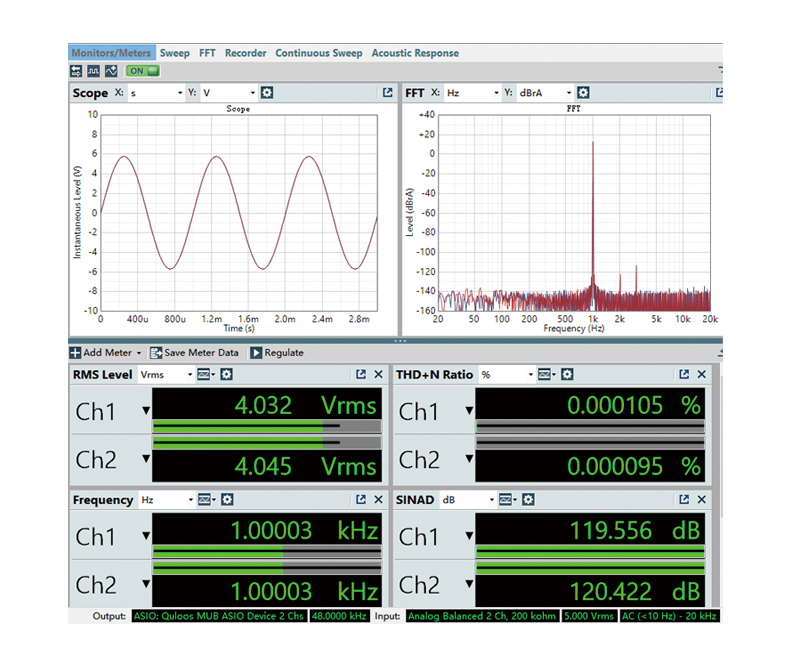

MUB1 overall distortion is better than the
theoretical value of DAC chips |
|
|

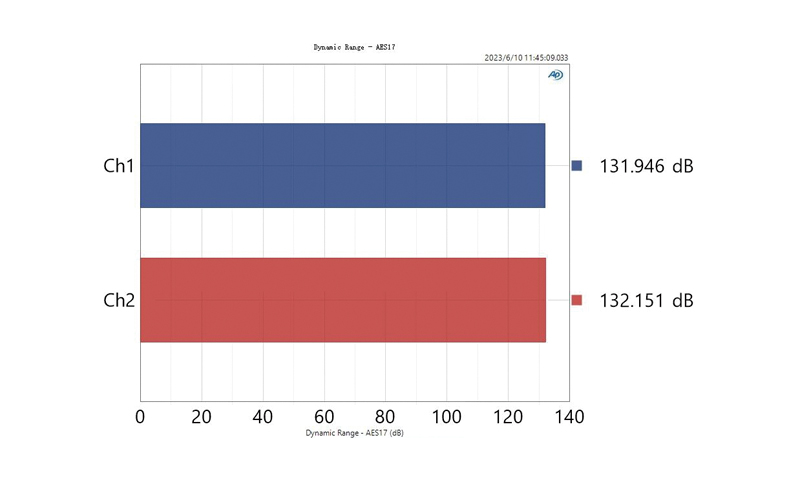

Flagship level dynamics |
|
|
|
Compared to the USD $2000 flagship HiFi
player, it is not inferior |
|
 |
|
Measurement based on APX555 audio analyzer |
|
|
|

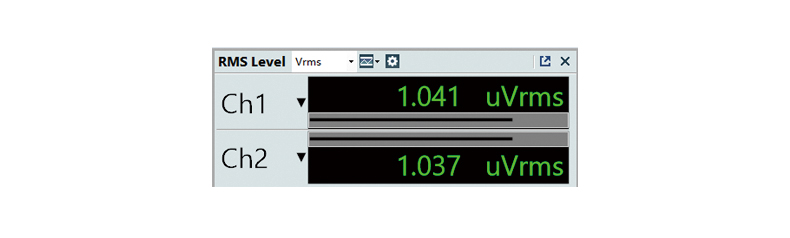

Almost “zero” noise |
|
|
|
MUB1, whether single ended or balanced,
the medium and low gain noise <2uVrms
50% of 4uVrms noise at low gain only for QA361
The signal-to-noise ratio is as high as 132dB
High sensitivity headphones also struggle to hear background
noise |
|
 |
|
|
|

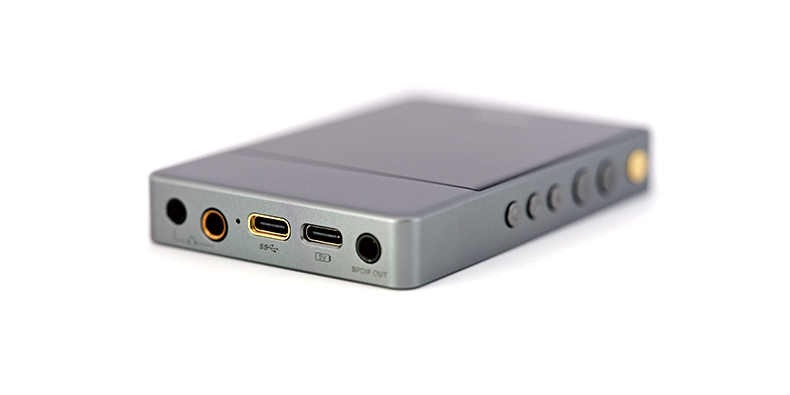

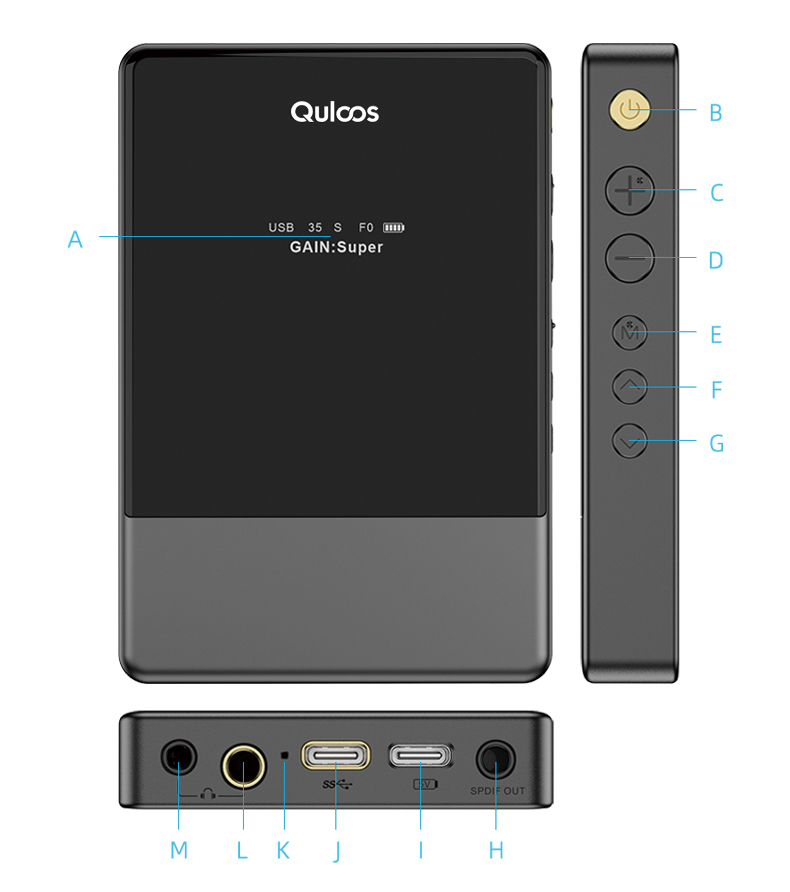

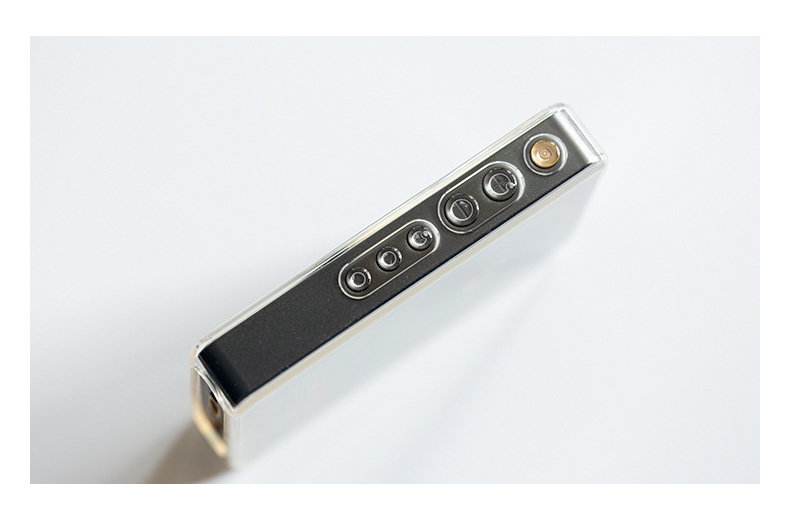

Key Interface Description |
|
|
|
 |
|
|
|
A |
Display area |
|
B |
Power button: Long press to turn on/off,
short press to turn off/wake up the display
screen |
|
C |
Volume +: Short press to increase the volume
by 1, long press to continuously increase the
volume by 1 |
|
D |
Volume -: Short press to decrease the volume
by 1, long press to continuously decrease the
volume by 1 |
|
E |
setting key (M): Short press to enter the
setting interface, long press to pause/play,
short press to connect/hang up when calling,
long press to reject |
|
F |
Previous track (↑): Switch to playing the
previous track and adjust the parameters upwards
when setting the interface |
|
G |
Next track (↓): Switch to playing the next
track; Adjust parameters downwards when setting
the interface |
|
H |
Digital audio output port: 3.5 optical and
3.5 coaxial (pin definition is shown in the
figure below) |
|
I |
Type-C charging or external power input port |
|
J |
Type-C audio OTG input port |
|
K |
Microphone pickup hole |
|
L |
4.4 balanced headphone port, also used as a
balanced LO port |
|
M |
3.5 single ended headphone port, doubles as
LO/AUX output port |
|
|
|
|

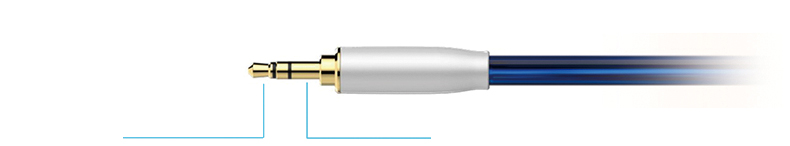

Description of 3.5 coaxial line foot position |
|
|
|
 |
|
Signal / Signal + GND / Signal
- |
|
|
|
Product parameters |
|
|
|
Item / model |
Balance port |
Single port |
| Body size |
96*65*14.5mm (L * W * H) |
| Host weight |
142g |
| Input
interface |
Type-C USB data,
Type-C USB power supply&charging, wireless
Bluetooth |
| Bluetooth
format |
Bluetooth 5.0,
LDAC, APTX, APTX-HD, ACC, SBC |
| USB protocol |
UAC2.0 protocol /
UAC1.0 protocol, supporting Windows, Mac,
Android, iOS systems |
| USB port DSD
sampling rate |
2.8224MHz
(DSD64), 5.6448MHz (DSD128), 11.2896MHz
(DSD256), Native or DoP |
| USB port PCM
sampling rate |
16Bit ~ 32Bit,
44.1kHz ~ 384kHz |
| Output
interface |
3.5 single ended
& 4.4 balanced headphones (can be set to Line
out/Aux out), 3.5 optical or coaxial SPDIF
digital output |
| Optical/
coaxial output |
16Bit ~ 24Bit,
44.1kHz ~ 192kHz PCM, DoP64 |
| DAC chip |
CS43131 * 4
pieces, QFN large package |
| OP |
Selected 2 OP*
pieces with excellent texture and musical appeal
|
| Headphone
amplifier chip |
BUF634A * 4 |
| Gain control |
Low / Mid / High
/ Super-High |
| Volume control |
This device has a
volume level of 100, which can be independently
adjusted from the phone volume |
| Frequency
response |
20Hz ~ 20kHz
±0.5db |
THD+N
(AES17 (20kHz),
A-weighted, unloaded, medium gain) |
0.0001% |
0.00015% |
SINAD
(AES17 (20kHz), unweighted, unloaded, medium
gain) |
120db |
116db |
SNR
(A-weighted,
medium gain) |
132db |
126db |
Dynamic range
(A-weighted,
medium gain) |
132db |
124db |
Crosstalk
(unloaded, medium gain) |
-140db |
-137db |
Crosstalk
(32Ω, medium gain) |
-95db |
-73db |
Output power
(THD+N<0.01%, S-gain) |
1100mW + 1100mW @32Ω |
410mW + 410mW @32Ω |
| 250mW + 250mW @300Ω |
65mW + 65mW @300Ω |
Noise floor
(A-weighted) |
1.2uVrms @G = L |
1.8uVrms @G = L |
| 1.2uVrms @G = M |
1.8uVrms @G = M |
| 2.5uVrms @G = H |
2.5uVrms @G = H |
| 8.3uVrms @G = S |
5.8uVrms @G = S |
|
Reference: High
sensitivity headphones are also difficult to
hear to the noise floor. When QA361 has low
gain, the noise floor is 4uV. |
| Battery life |
8~10 hours |
| Charging time |
2~3 hours |
| Charger |
Type-C charger
(user provided), DC 5V, ≥2A |
| External power
input |
Input from
charging port Type-C, DC 5V, ≥2A |
| Microphone
function |
Support Bluetooth
calls with built-in omnidirectional microphone |
|
Note: The above audio parameter measurements
are based on the APX555 audio analyzer, with the
internal battery fully charged and F0 filtering mode,
tested in the qianlongsheng Laboratory environment.
|
|
|
|
 |
|
|
 |
|
|

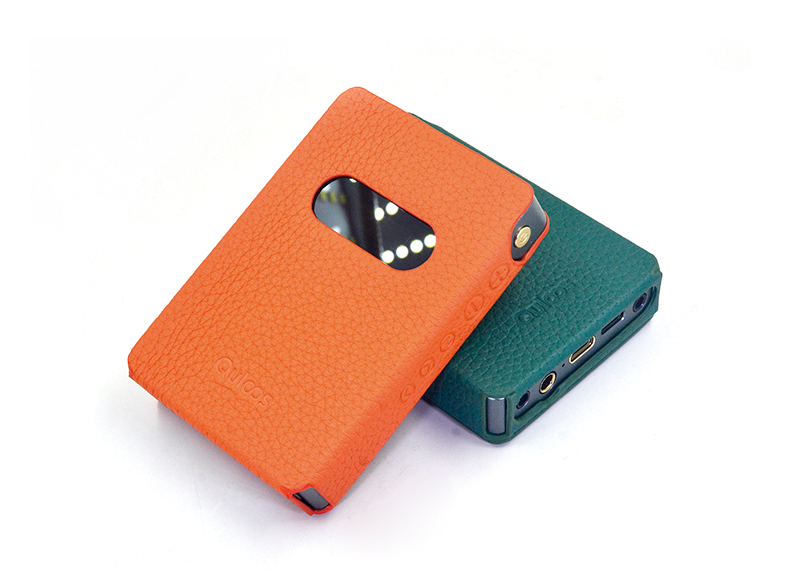

Note: The leather case in the picture is an optional
item and needs to be purchased separately. Price:US
$30.00
|
Note:
1. All components in the picture that are not included in the
MUB1 product list, such as headphones, computers, speakers, and
cars, are shown as shooting props and are not included in the
product.
2. The internal drawings of the product are for reference only,
and are subject to modification without prior notice.
3. The product pictures are for reference only, and everything
is subject to the actual product.
|
| |
|
Product List |
|
MUB1 machine, USB A to C adapter, Manual, TPU
For free: One Type-C, one Lightning connection cable, and one
USB charging cable each.
|
Price: MUB1 USB and Bluetooth DAC&Headphone Amp US $499.99
(Not included
shipping)
|
|
|
|
|
|
